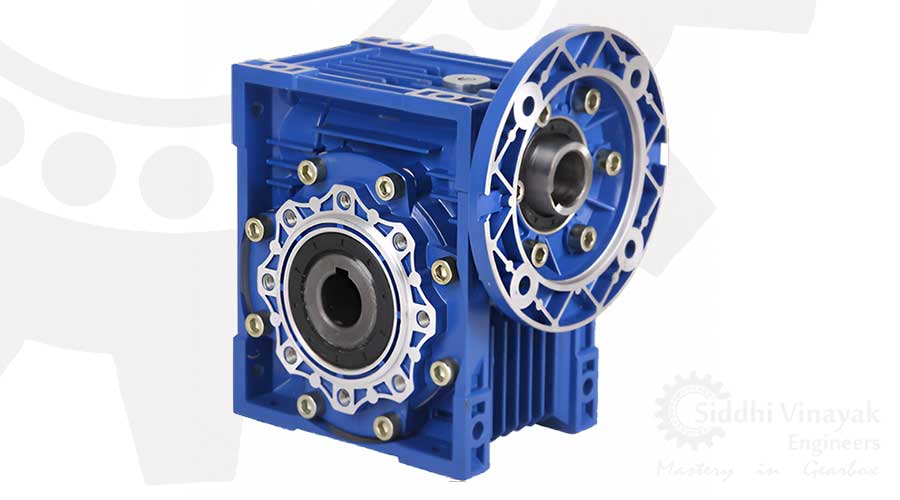

Worm Geared Motor

Siddhivinayak Engineering offers a range of high-quality worm gears that are considered industry milestones. These worm gears provide flexibility with a wide selection of mounting options, shaft configurations, and motor interfaces as standard features.

The standard series worm gear units from Siddhivinayak Engineering have a proven design known for their reliability and track record in various industries. These robust units come in different mounting configurations, making them versatile for a wide range of applications. Smaller units are Rib Cooled, while larger units come with Fan Cooling.

In addition to the standard series, Siddhivinayak Engineering has introduced a new line of worm gear units with aluminum die-casting housing. The "PVF" and "W" series worm gear reducers and geared motors offer various input and output mounting configurations. The input shaft can be hollow with a flange for mounting a standard size IEC motor, or a solid shaft for coupling connection. The output shaft is available in both hollow and solid configurations, with options for foot, flange, or direct face mounting.

These new series from Siddhivinayak Engineering incorporate unique design features that set them apart in terms of performance and reliability.

• Range :

  Power range from 0.06 kW up to 7.5 kW

• Ratio range :

  7.5: 1 up to 1600 : 1

• Sizes :

  Center Distance from 30 mm up to 150 mm

• Mounting :

  Foot & Flange mounted

• Reduction :

  Single & Double reduction

• Applications :

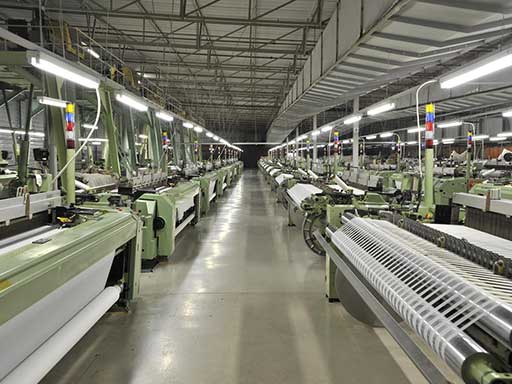

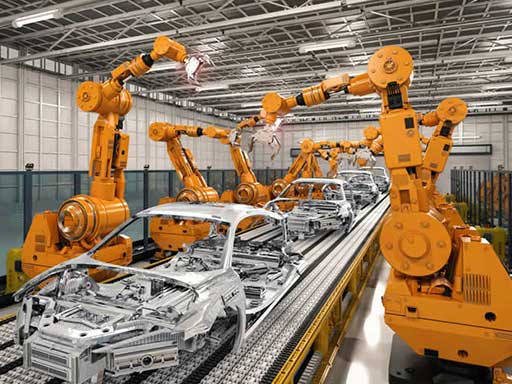

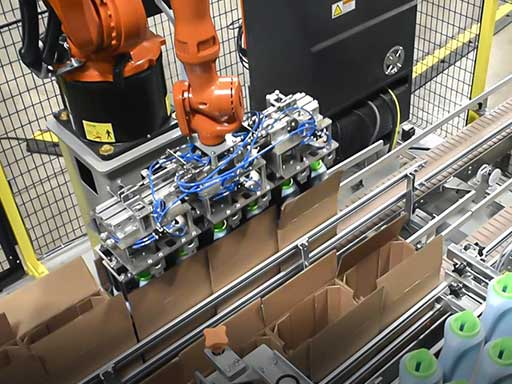

  Conveyors, Packaging, Loading, Automation, Textile
