Geared Coupling

Gear Couplings offer exceptional mechanical flexibility, adept at compensating for Angular, Parallel, and Axial misalignments in connected shafts. These couplings find widespread applications across various industries, including Metal Rolling Mills, Paper Machinery, Cranes, Dredgers, Rubber and Plastic Industries, Cement Plants, Conveyors, Elevators, Compressors, Fans, Blowers, Screens, and more.

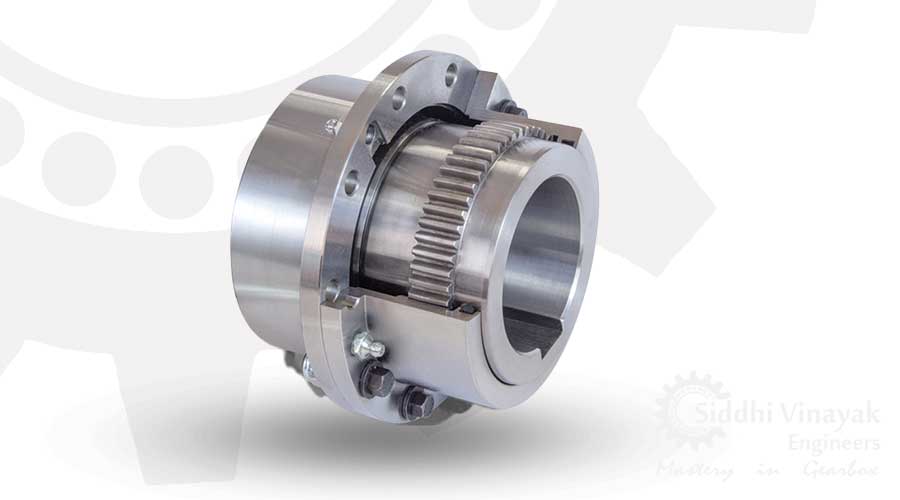

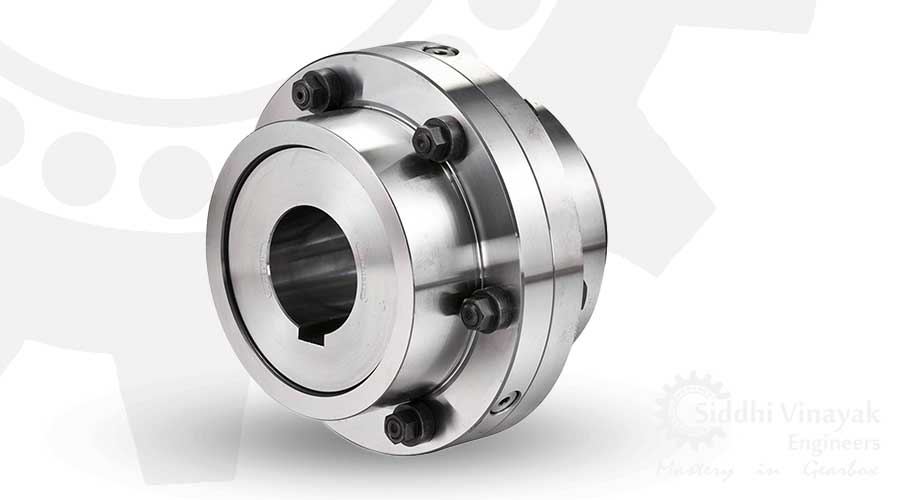

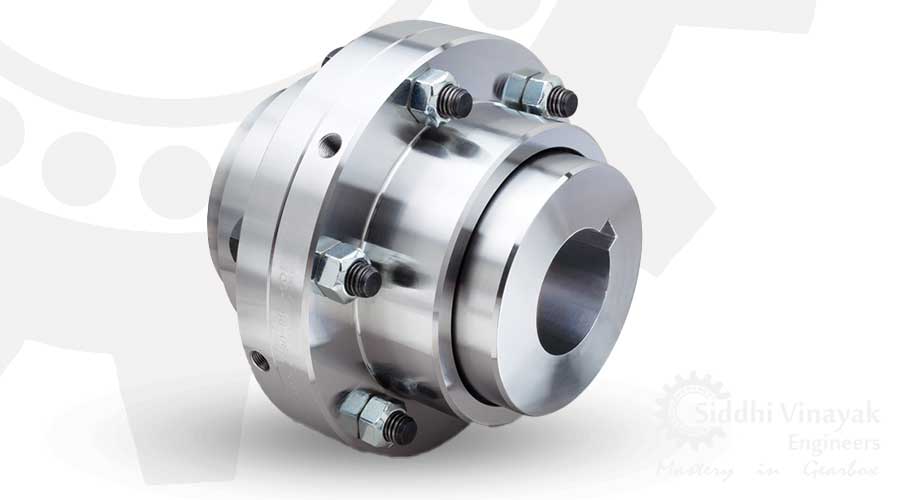

Crafted from durable carbon steel and hardened to precision, Gear Hubs and outer sleeves ensure optimal gear meshing and interchangeability. The crowned teeth of Gear Hubs, meticulously generated through the involute system, coupled with carefully chosen crowning and backlash values, guarantee superior torque transmission, enhanced flexibility, and seamless operations.

Precision-engineered internal teeth of the sleeves ensure accurate profiles, while high tensile steel bolts (class 8.8 IS: 1367) securely join the coupling sleeves with a gasket in between. Moreover, sizes from FGC 11 to FGC 19 feature seal carriers for convenient inspection and 'O' ring replacement without disrupting alignment.

Refer to the provided Table for standard power ratings. When selecting the ideal couplings, consider the appropriate service factor based on machine type and peak load. Siddhivinayak Engineering offers these top-notch Gear Couplings for your industrial needs, ensuring reliable performance and efficient service delivery.

• Service factor :

  2 (for heavy duty application)

• Peak load :

  180% of full load.

• Design power :

  250 x 180/100 x 2 = 900 KW
